Portable Power Station Welding

Portable power station welding covers the interior joints inside modern lithium power boxes — cell tab to nickel strip on cylindrical, pouch and prismatic cells, nickel strip to copper busbar transitions, BMS-board lead-outs, main busbars and fuse terminals. High-current pathways demand low contact resistance while cell bodies cannot see thermal damage; three cell form factors each need a different setup.

Send Sample for Evaluation Compare Processes

[TODO: hero image — cell tab to nickel strip weld on a cylindrical lithium pack, or copper busbar on a portable power station internal assembly]

Typical joints

Typical portable power station parts and joints

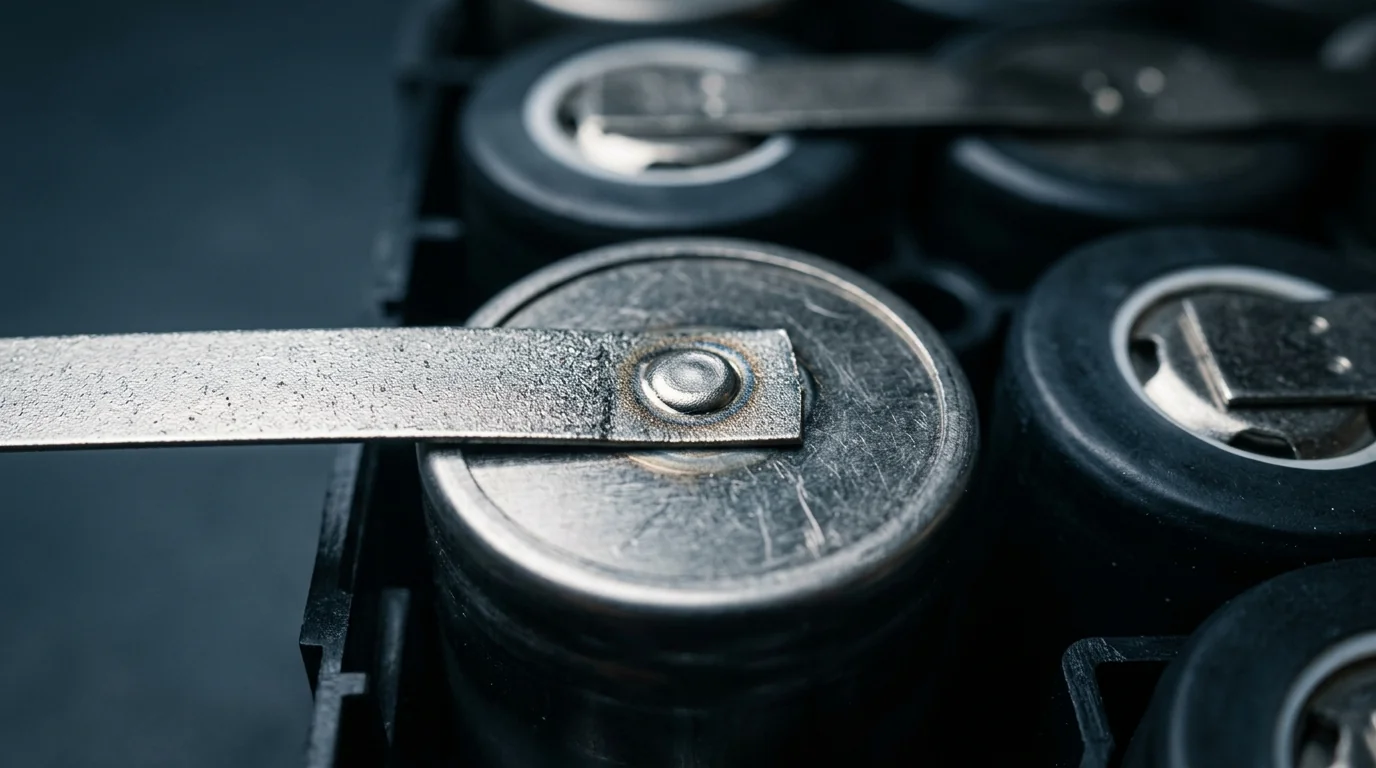

Cell tab (nickel-plated steel or copper) to nickel strip on cylindrical cells (18650, 21700, 26650, 32700)
Nickel strip to copper busbar transition on pack-level interconnects
Pouch-cell tab weld — aluminum positive and copper negative tabs each to their respective busbars
Prismatic-cell terminal to busbar with larger contact area and higher current per joint
BMS board lead-outs — sensor wires and cell-balance leads terminated to the appropriate cell nodes
Main busbar to inverter or output-port interface — the largest cross-section joint inside the box
Fuse terminal welds — resistive element to end caps without altering the fuse’s blow characteristic

Process fit

Which process fits portable power station welding

Resistance spot (dominant on nickel-strip work)

The workhorse for cell-tab and nickel-strip joints

Resistance spot dominates on cell-to-nickel-strip and nickel-strip-to-busbar joints where both sides pass current cleanly. Millisecond pulses at controlled force keep heat from soaking the cell body. Different form factors want different electrode geometries: dual-tip fork for cylindrical, opposed setups for pouch. See the resistance line →

Laser (copper busbars, high-current paths)

Copper busbars and dissimilar-metal joints

Copper’s high thermal conductivity and reflectivity at 1064 nm defeat most resistance approaches on the busbar side. Laser puts energy through the surface fast enough to melt copper before the heat conducts away, and it also fits the dissimilar-metal joints (nickel-to-copper, aluminum-to-copper) where a single resistance-spot recipe cannot balance the two sides. See the laser line →

Pulse arc / Micro TIG (occasional)

Not the primary fit for cell-adjacent joints

Arc heat is generally too much for adjacency to a live cell body. Pulse arc appears on repair scenarios and on some BMS-side terminal work carried out away from cells. See the pulse arc line →

Because pack internal resistance and calendar-life uniformity both depend on this joint’s consistency across thousands of welds per pack, sample builds run through the customer’s own internal-resistance measurement flow are the acceptance step that locks the process choice.

What’s hard

Common difficulties in portable power station welding

Copper’s high thermal conductivity and reflectivity — energy conducts away before the joint fuses on resistance spot, and 1064 nm laser reflects off polished copper until spatter or oxide opens an entry point.
Dissimilar-metal joints (nickel-copper-aluminum triples) — every pair carries a melting-point mismatch; asymmetric electrode setups or asymmetric laser focus positioning compensate.
Cell thermal damage limit — energy has to fuse the tab and stay out of the cell body; force, pulse width and cool-down time all trade against this limit.
Batch consistency drives pack-level metrics — variation across thousands of welds inside a single pack shows up as internal-resistance spread and shortens the weakest cell’s calendar life. Portable power stations sit inside the broader battery-welding context.

Portable power station internals mix nickel-strip work, copper busbars and cell-thermal limits in one build. The most reliable way to lock parameters for a specific pack architecture is a sample build run through the customer’s own internal-resistance measurement. The evaluation itself is free.
