Hybrid Microwave Device Welding

Hybrid microwave devices combine an active die, a metallized ceramic substrate, internal interconnect, and a hermetic package into a single compact module — and every interior joint has to survive both weld heat and downstream thermal cycling on a stack of materials with very different expansion behavior. Kovar lead pins through alumina walls, thin metallization on ceramic carriers, and internal shield-can lid seals all live or die on CTE-mismatch control between the ceramic body, the metallization film and the lead alloy.

Send Sample for Evaluation Compare Processes

[TODO: hero image — Kovar lead pins through an alumina package wall with a metallized ceramic substrate carrier inside the cavity]

Typical joints

Typical hybrid microwave device parts and joints

Hybrid microwave modules bring together a small number of interior joint families, all clustered inside the package cavity rather than at the external module interface:

Ceramic substrate metallization layers — thin gold, silver or copper plating on alumina, aluminum-nitride (AlN) or beryllia (BeO) — bonded to Kovar or molybdenum carriers and lead frames

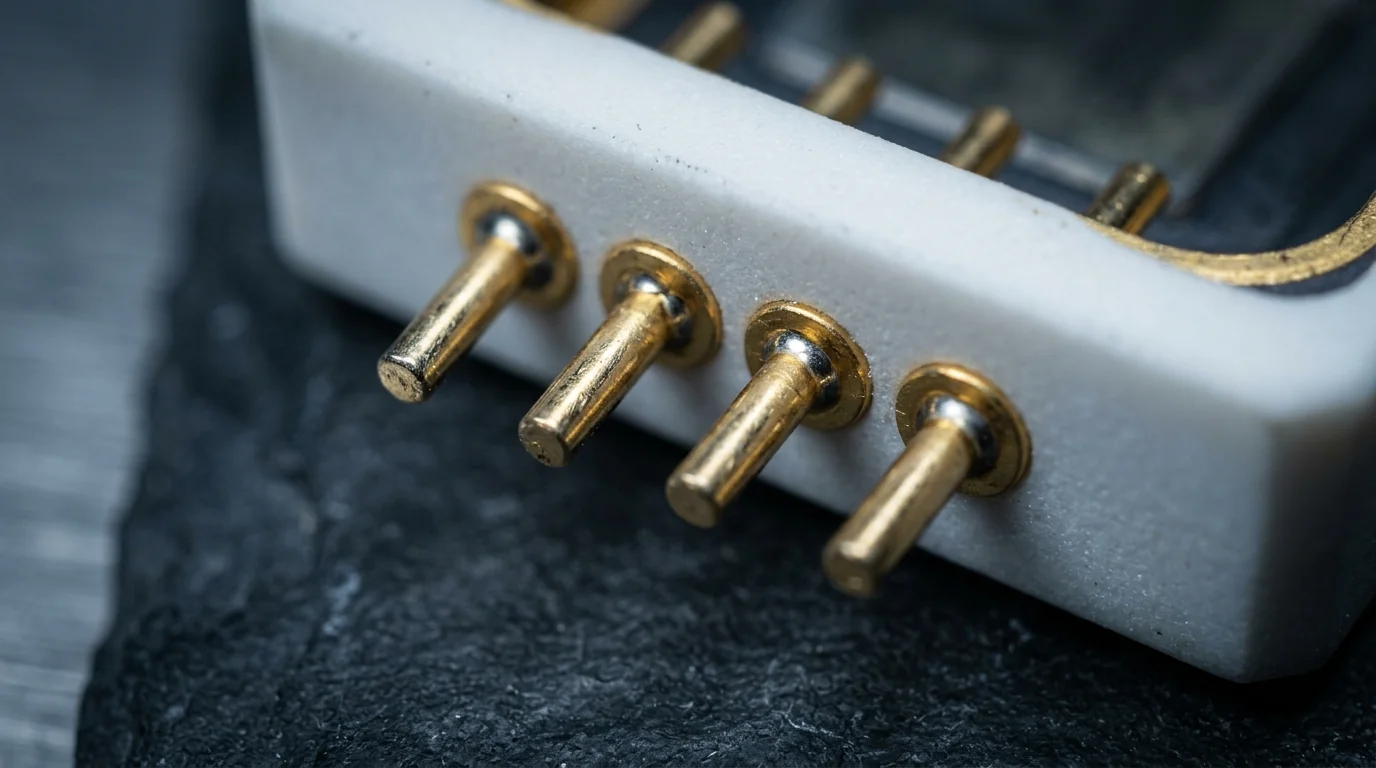

Kovar lead pin feedthroughs passing through alumina package walls with a glass-to-metal seal on each pin
Lead-frame terminations on hybrid module carriers where the internal signal path exits to the package boundary
Internal shield-can lid welds isolating individual amplifier, mixer or filter stages inside a multi-stage hybrid package
Die-attach solder-preform reflow joints seating GaAs or GaN MMIC die onto metallized carrier pads
Pin-to-metallization pad tacks joining Kovar lead ends to gold or silver traces on the ceramic substrate

Process fit

Which process fits hybrid microwave device welding

Resistance spot (workhorse here)

Pin ends and lead frame tabs onto metallized carriers

Resistance spot is the primary interior process for tacking Kovar lead ends and lead-frame tabs onto metallized pads on ceramic carriers. Precise short-pulse energy control keeps localized temperature below the point where alumina cracks or thin plating lifts, and asymmetric electrode geometry biases heat toward the heavier lead side so the delicate metallization survives intact. This is the volume interior joint on most hybrid microwave carriers. See the resistance spot line →

Laser

Hermetic pin feedthroughs and internal shield-can lid seals

Laser earns its place on the interior joints where hermeticity or minimum heat input decides the outcome. Kovar leads passing through an alumina package wall, and internal shield-can lid seals isolating amplifier or mixer stages inside a multi-stage hybrid, both need a narrow fusion zone that keeps substrate temperature well below the CTE-mismatch cracking window. Autogenous seams also leave no filler intruding onto adjacent metallization. See the laser line →

Pulse arc / Micro TIG

Heavier lead frame terminations and carrier repair welds

Pulse arc / micro TIG covers heavier lead frame terminations, package body flange work, and repair welds on hybrid module carriers where a small filler bead is workable and torch clearance is adequate. It is less common on the interior joints themselves because filler intrusion and higher heat input both raise the risk on thin metallization and thermally sensitive ceramic. See the pulse arc line →

Interior joint outcomes on a hybrid microwave carrier are governed by the CTE stack of the specific ceramic, metallization and lead alloy in use, so a sample weld on the actual substrate and pin material, followed by a pull-strength or thermal-cycle check, is the reliable way to lock parameters. External RF-interface joints on the same module — the transmission-line side — sit on the RF devices application page.

What’s hard

Common difficulties in hybrid microwave device welding

Four failure modes dominate interior joints on hybrid microwave carriers, and CTE mismatch is the through-line behind most of them. Group them by where the failure lands — on the ceramic body itself under weld and thermal-cycle heat, or at the interface between metal and metallization once the joint is loaded:

Ceramic-body behavior under heat

CTE mismatch at the ceramic-metal-metallization interface — Kovar sits near 5.5 ppm/°C, alumina near 7, and gold metallization near 14; under weld heat and later thermal cycling the mismatch concentrates strain at the joint and eventually cracks it. Pulse energy that stays inside a narrow window, matched carrier alloys, and controlled cool-down all reduce the strain excursion.
Ceramic thermal shock — localized rapid heating on alumina or aluminum-nitride bodies opens micro-cracks that propagate on the next thermal cycle. Ramped energy profiles, spread pulse timing and, where practical, package-level preheat keep the temperature gradient inside the ceramic’s tolerance.

Interface integrity failures

Metallization layer delamination — thin plated gold, silver or copper on ceramic peels from the substrate under excess heat input, and delaminated pads no longer support a downstream die-attach or wire bond. Pulse energy is held well below the delamination threshold, and electrode force is kept light enough not to abrade the plating.
Pin pull-strength and concentricity on feedthrough joints — a hermetic seal is only half of the acceptance criterion on a lead feedthrough; the joint also has to hold mechanical pull without cracking the surrounding glass-to-metal seal or unseating the pin from its bore.
